Apple Cinema 30"


Antenna
Radio
Brand
XTUGA
Color
Black
Number of Channels
10
Impedance
50 Ohm
Maximum Range
2600 Feet
Item Dimensions LxWxH
1.65 x 15.75 x 5.9 inches



          Antenna distribution system is an amplifying UHF antenna distribution system that extends the functionality of a wireless microphone system by splitting a pair of antennas into a wireless receiver.It is also capable of amplifying RF signals to compensate for insertion losses resulting from the distribution of signal power to multiple output connecters, and has a power plug capable of powering UHF wireless systems.


Technical parameters of active directional antenna:

  • Antenna type: log periodic dipole oscillator array
  • RF frequency range 400-950MHz
  • Operating voltage 10V DC
  • Impedance: 50 Ω
  • Head type: BNC
  • Antenna gain: 7.5dBi

  Technical parameters of antenna distribution system:

  • Carrier frequency range: 400-950MHz
  • Type of input/output antenna connector: BNC
  • Impedance: 50 Ω
  • Output external power supply: DC 12V 800mA

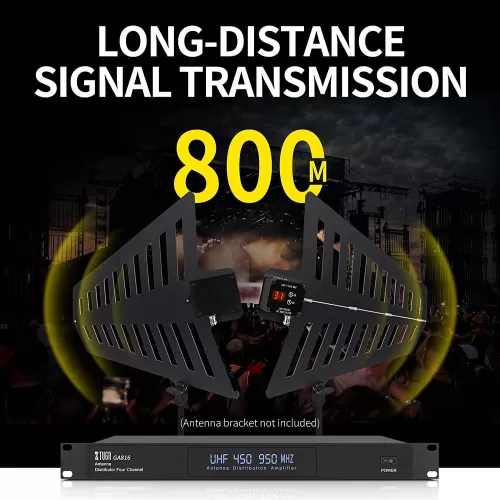

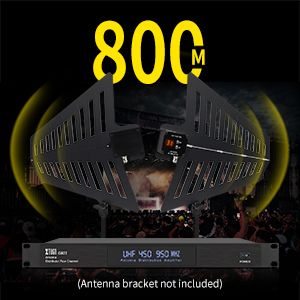

    • 800 Meter Receiver Distance

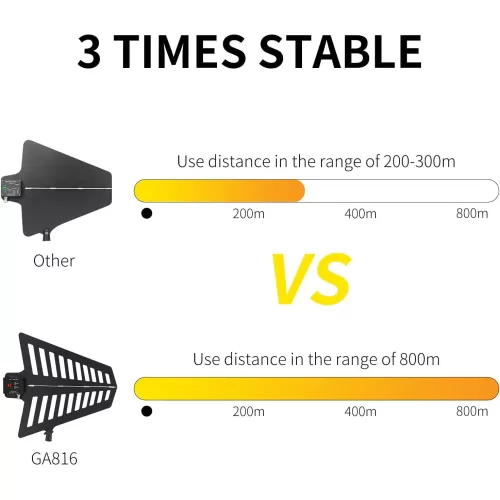

    Large-scale UHF wireless system, designed for wireless microphone receiving , 800 meters stable signal reception, which is the three times of similar products use distance range on the market.

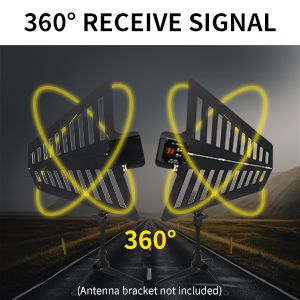

    360° Perfect Receiver Signal

    360° signal reception range,coverage every angle,microphone transmission is more stable.

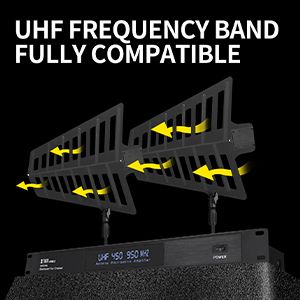

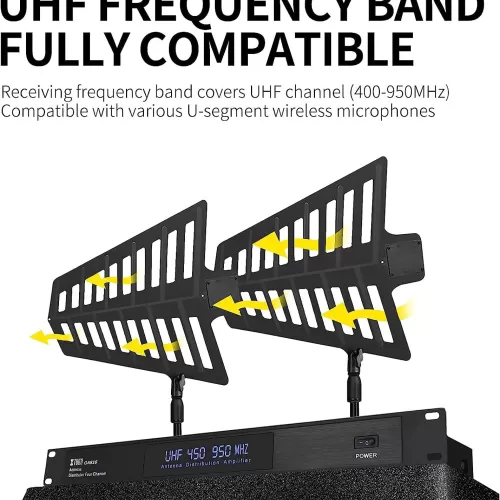

    Fully Compatible

    Receiving frequency band covers UHF channel (400-950mhz),compatible with various U-segment wireless microphones

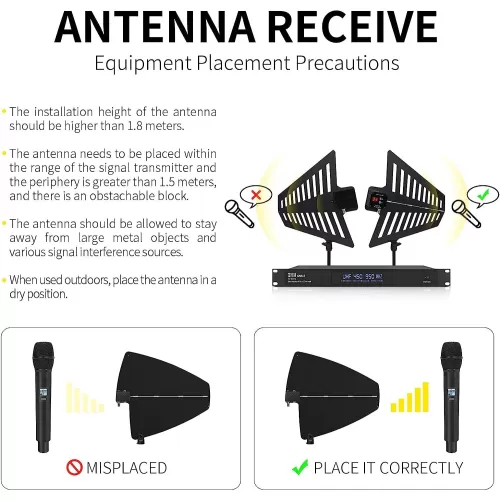

    Precautions for the placement of antenna receiving equipment:

    1. The signal transmission of this equipment has directivity，In the direction of the range to obtain a better transmission effect.
    2. The antennas shall be fixed at a distance of at least 1.5 m from each other. The antennas shall be installed at a height of more than 1.8 m.
    3. Position the antenna so that the transmitter is clear of any obstructions (including spectators) in line of sight.
    4. The antenna should be kept away from large metal objects.
    5. For outdoor use, please place the antenna in a dry location. Dampness and rain will affect the energy efficiency and safety of the BNC interface and cable.

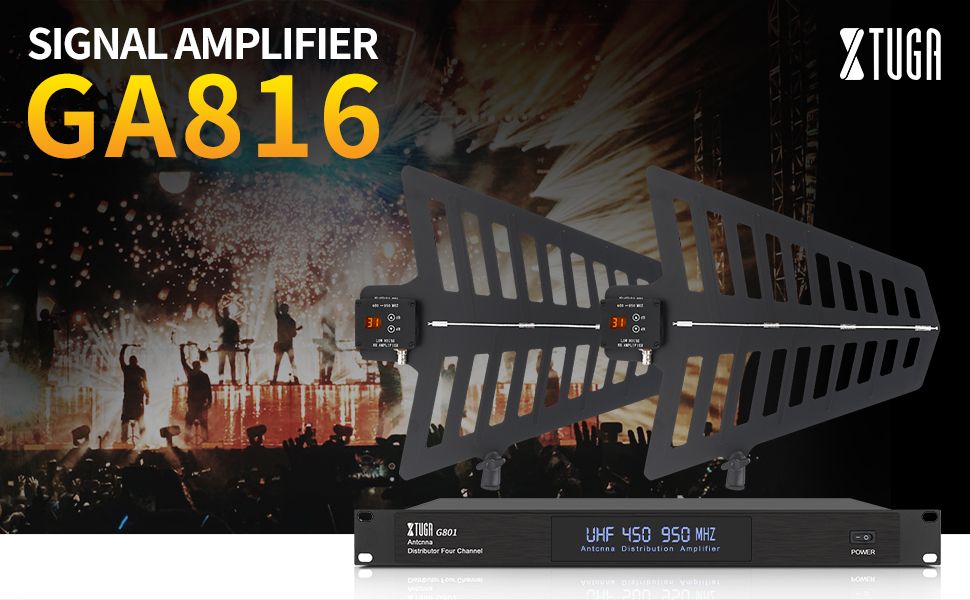

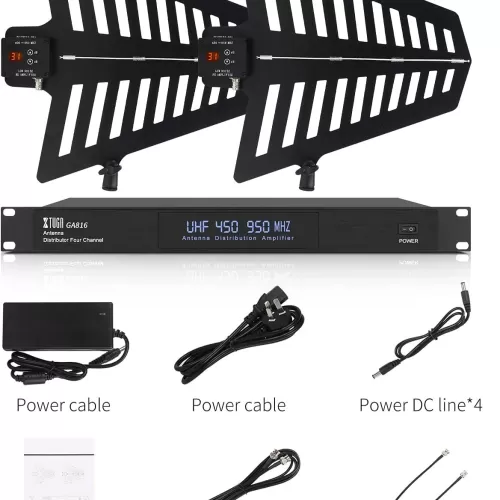

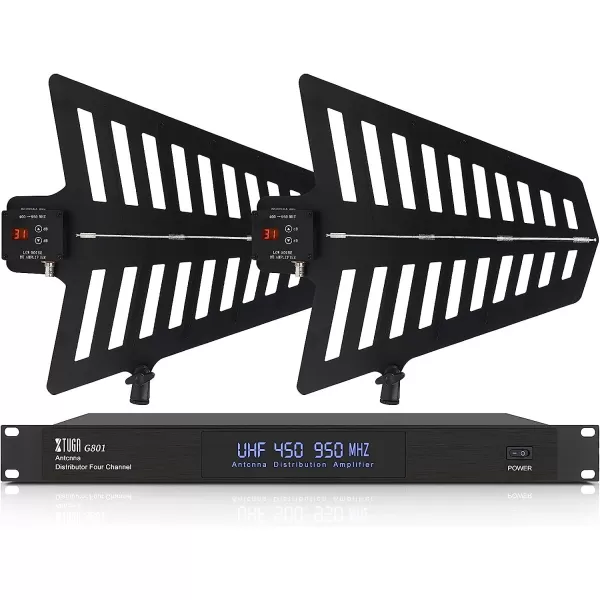

Xtuga GA816 - Wireless Microphone Antenna Distribution System Equipment

  • Product Code: XTUGA-GA816


Antenna
Radio
Brand
XTUGA
Color
Black
Number of Channels
10
Impedance
50 Ohm
Maximum Range
2600 Feet
Item Dimensions LxWxH
1.65 x 15.75 x 5.9 inches

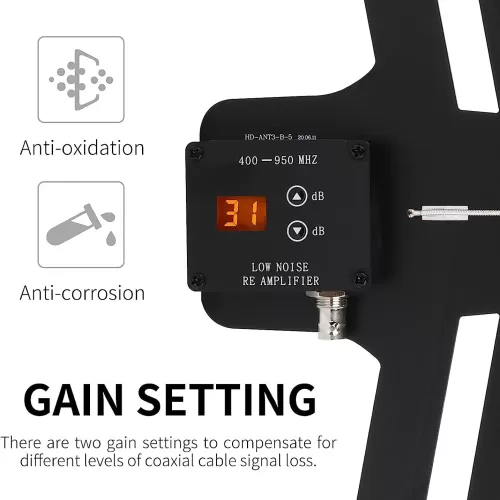

          Antenna distribution system is an amplifying UHF antenna distribution system that extends the functionality of a wireless microphone system by splitting a pair of antennas into a wireless receiver.It is also capable of amplifying RF signals to compensate for insertion losses resulting from the distribution of signal power to multiple output connecters, and has a power plug capable of powering UHF wireless systems.


Technical parameters of active directional antenna:

  • Antenna type: log periodic dipole oscillator array
  • RF frequency range 400-950MHz
  • Operating voltage 10V DC
  • Impedance: 50 Ω
  • Head type: BNC
  • Antenna gain: 7.5dBi

  Technical parameters of antenna distribution system:

  • Carrier frequency range: 400-950MHz
  • Type of input/output antenna connector: BNC
  • Impedance: 50 Ω
  • Output external power supply: DC 12V 800mA

    • 800 Meter Receiver Distance

    Large-scale UHF wireless system, designed for wireless microphone receiving , 800 meters stable signal reception, which is the three times of similar products use distance range on the market.

    360° Perfect Receiver Signal

    360° signal reception range,coverage every angle,microphone transmission is more stable.


    Fully Compatible

    Receiving frequency band covers UHF channel (400-950mhz),compatible with various U-segment wireless microphones


    Precautions for the placement of antenna receiving equipment:

    1. The signal transmission of this equipment has directivity，In the direction of the range to obtain a better transmission effect.
    2. The antennas shall be fixed at a distance of at least 1.5 m from each other. The antennas shall be installed at a height of more than 1.8 m.
    3. Position the antenna so that the transmitter is clear of any obstructions (including spectators) in line of sight.
    4. The antenna should be kept away from large metal objects.
    5. For outdoor use, please place the antenna in a dry location. Dampness and rain will affect the energy efficiency and safety of the BNC interface and cable.
  • Brand: Xtuga
  • Viewed: 4074
  • Availability: In Stock
Xtuga

$259.00

$389.00 -33%
