Apple Cinema 30"


BrandXtuga Audio
Item model
Xtuga IEM1200
BodyPack Quantity8 IEM1200 BodyPack
Product Dimensions
21.65 x 14.17 x 3.54 inches
Item Weight
3.35 Kg
Batteries
2 AA batteries required.
Audio Jack
3.5 mm Jack
Color
Black
Special features
Volume Control, Lightweight
ASIN
B07NSX1QPX

Product Description:

IEM1200 wireless In Ear Monitor System 2 Channel Monitoring 8 bodypacks

Specification: Transmitter

Case specification:standard 1U

Case material:metal panel

Oscillation mode:PLL synthesized

Frequency stability:±0.005%

Frequency range:550-580MHz

Frequency interval:32MHz

Preset Channel: 40 channels separately set 4 groups

Operate mode:manual adjust

Max Deviation:±48KHz

Frequency response:50Hz~15KHz±3dB

Transmit output power:100mW(50Ω)

Harmonic radiation:＜4NW

AF input:XLR,φ6.35mm jack

Earphone load impedance:≥16Ω

Current consumption:DC 12V/250mA

Antenna socket:TNC socket(50Ω)


Receiver:

Oscillation mode:PLL Synthesized

Frenquency range:550-580MHz

Preset channel:40 channels separately set 4 groups

Operate mode:manual adjust

Receiving mode:single tuning

Sensitivity:deviation 25 khz,with conecting 7dBuV,S/N＞78dB

Max Deviation:±48KHz

Comprehensive T.H.D:＞94db(1KHZ-A)

Comprehensive Reaponse::50Hz~15KHz±3dB

Output power:(32Ω)2x35mw@1KHz

Earphone load impedance:≥16Ω

Out socket:φ3.5mm stereo earphone socket

Volume output adjusts:adjust when using

Power box :batteries AAX2

Current drain:3V/120mA(Under the mediant degrees of the volume control)


Package Include(Whole system):

Transmitter × 1

Bodypack receiver(with earphone) × 8

Antenna × 2

Cable Line × 4/8

Power Adapter × 1

User Manual × 1


Xtuga IEM1200 8 Bodypack Wireless In Ear Monitor System

  • Product Code: xtuga-iem1200-8


BrandXtuga Audio
Item model
Xtuga IEM1200
BodyPack Quantity8 IEM1200 BodyPack
Product Dimensions
21.65 x 14.17 x 3.54 inches
Item Weight
3.35 Kg
Batteries
2 AA batteries required.
Audio Jack
3.5 mm Jack
Color
Black
Special features
Volume Control, Lightweight
ASIN
B07NSX1QPX

Product Description:

IEM1200 wireless In Ear Monitor System 2 Channel Monitoring 8 bodypacks

Specification: Transmitter

Case specification:standard 1U

Case material:metal panel

Oscillation mode:PLL synthesized

Frequency stability:±0.005%

Frequency range:550-580MHz

Frequency interval:32MHz

Preset Channel: 40 channels separately set 4 groups

Operate mode:manual adjust

Max Deviation:±48KHz

Frequency response:50Hz~15KHz±3dB

Transmit output power:100mW(50Ω)

Harmonic radiation:＜4NW

AF input:XLR,φ6.35mm jack

Earphone load impedance:≥16Ω

Current consumption:DC 12V/250mA

Antenna socket:TNC socket(50Ω)


Receiver:

Oscillation mode:PLL Synthesized

Frenquency range:550-580MHz

Preset channel:40 channels separately set 4 groups

Operate mode:manual adjust

Receiving mode:single tuning

Sensitivity:deviation 25 khz,with conecting 7dBuV,S/N＞78dB

Max Deviation:±48KHz

Comprehensive T.H.D:＞94db(1KHZ-A)

Comprehensive Reaponse::50Hz~15KHz±3dB

Output power:(32Ω)2x35mw@1KHz

Earphone load impedance:≥16Ω

Out socket:φ3.5mm stereo earphone socket

Volume output adjusts:adjust when using

Power box :batteries AAX2

Current drain:3V/120mA(Under the mediant degrees of the volume control)


Package Include(Whole system):

Transmitter × 1

Bodypack receiver(with earphone) × 8

Antenna × 2

Cable Line × 4/8

Power Adapter × 1

User Manual × 1


  • Brand: Xtuga
  • Viewed: 4752
  • Availability: In Stock
Xtuga

$362.90

$362.90 -0%
Ask Question

Tags:Xtuga IEM1200

Online payment
Easy Return
24x7 Service
0/50 reviews
Write a review

Related Products

Xtuga IEM1200 2 BodyPacks Professional 2 Channel Best In Ear Monitor System For Singers
Xtuga IEM1200 2 BodyPacks Professional 2 Channel Best In Ear Monitor System For Singers
Xtuga IEM1200 2 BodyPacks Professional 2 Channel Best In Ear Monitor System For Singers
  • Xtuga IEM1200 2 BodyPacks Professional 2 Channel Best In Ear Monitor System For Singers
  • Xtuga IEM1200 2 BodyPacks Professional 2 Channel Best In Ear Monitor System For Singers
  • Xtuga IEM1200 2 BodyPacks Professional 2 Channel Best In Ear Monitor System For Singers
Sale
New

Xtuga IEM1200 2 BodyPacks Professional 2 Channel Best In Ear Monitor System For Singers

$159.90 $189.00

BrandXTUGA AudioModelXTUGA IEM1200ColorBlackForm FactorIn EarConnectivity TechnologyWirelessIEM..

Xtuga IEM1200 4 Bodypacks Inexpensive Best Personal In Ear Monitor System
Xtuga IEM1200 4 Bodypacks Inexpensive Best Personal In Ear Monitor System
Xtuga IEM1200 4 Bodypacks Inexpensive Best Personal In Ear Monitor System
  • Xtuga IEM1200 4 Bodypacks Inexpensive Best Personal In Ear Monitor System
  • Xtuga IEM1200 4 Bodypacks Inexpensive Best Personal In Ear Monitor System
  • Xtuga IEM1200 4 Bodypacks Inexpensive Best Personal In Ear Monitor System
New

Xtuga IEM1200 4 Bodypacks Inexpensive Best Personal In Ear Monitor System

$225.50

BrandXtuga AudioItem modelXtuga IEM1200BodyPack Quantity4 IEM1200 BodyPackProduct Dimensions21.65 x ..

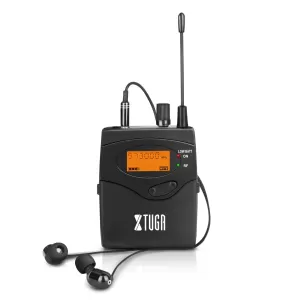

Xtuga IEM1200 Bodypack Receiver
Xtuga IEM1200 Bodypack Receiver
Xtuga IEM1200 Bodypack Receiver
  • Xtuga IEM1200 Bodypack Receiver
  • Xtuga IEM1200 Bodypack Receiver
  • Xtuga IEM1200 Bodypack Receiver
Sale
New

Xtuga IEM1200 Bodypack Receiver

$39.00 $45.00

Before buying please check if the frequency of your old bodypack is 550-580 HMz, we only sell 550-58..

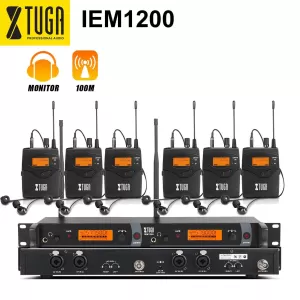

Xtuga IEM1200 6 Bodypack Wireless In Ear Monitor System
Xtuga IEM1200 6 Bodypack Wireless In Ear Monitor System
Xtuga IEM1200 6 Bodypack Wireless In Ear Monitor System
  • Xtuga IEM1200 6 Bodypack Wireless In Ear Monitor System
  • Xtuga IEM1200 6 Bodypack Wireless In Ear Monitor System
  • Xtuga IEM1200 6 Bodypack Wireless In Ear Monitor System
Sale
New

Xtuga IEM1200 6 Bodypack Wireless In Ear Monitor System

$294.90 $339.90

BrandXtuga AudioItem modelXtuga IEM1200BodyPack Quantity6 IEM1200 BodyPackProduct Dimensions21.65 x ..

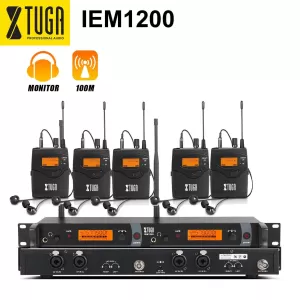

Xtuga IEM1200 5 Bodypack Wireless In Ear Monitor System
